PHDT55

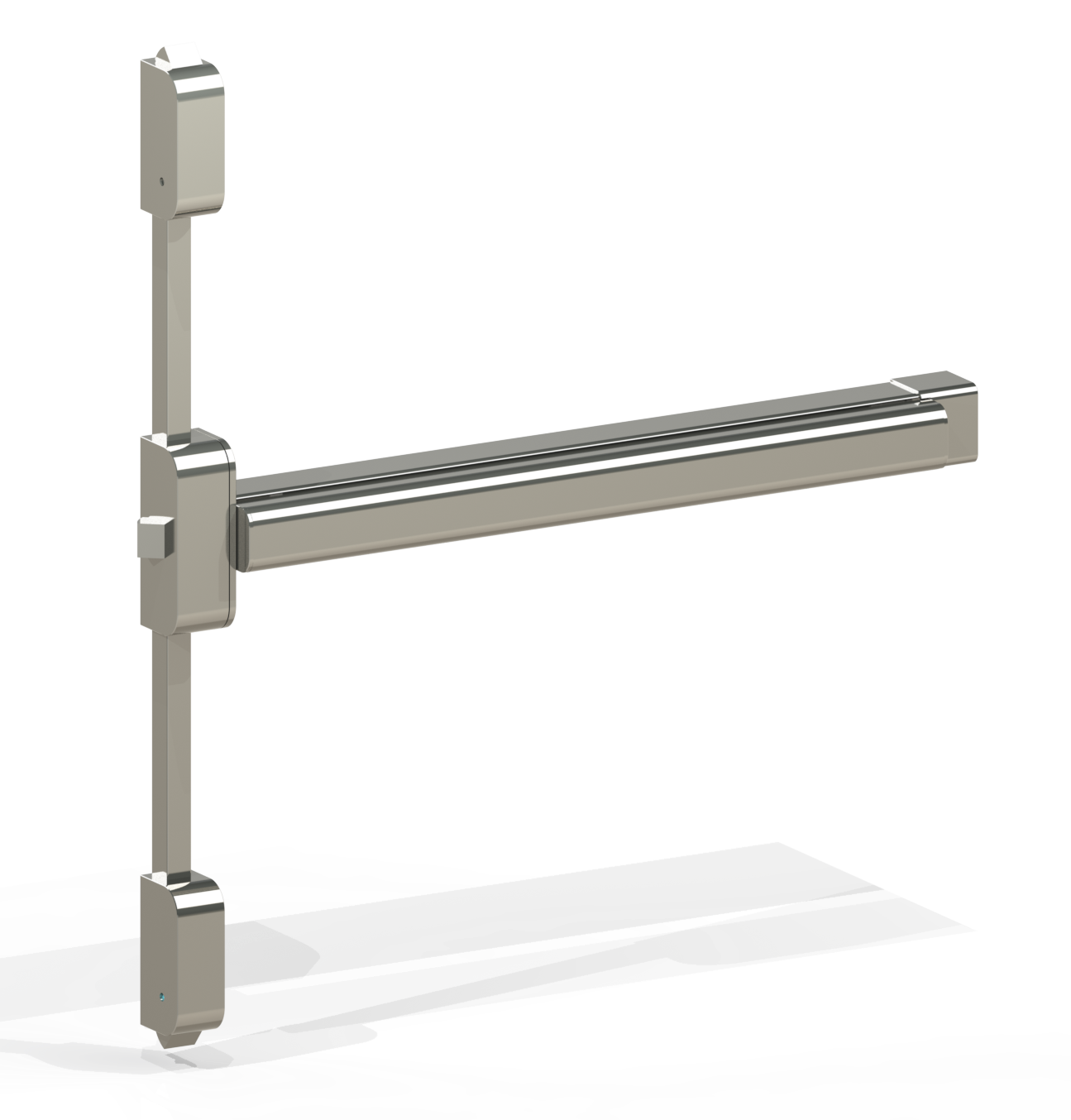

D-Fine three point touch bar panic bolt for use on a single door NB: The centre mechanism cannot be blanked off, we have a 2 point bolt PHDT54 in the D-Fine range
Comprises a mechanism and full width touch bar with covered connecting rods and vertical latching pullman latches at the top and bottom.
Suits doors up to 1200mm wide and 2647mm high.
Supplied with strikers for timber or metal doors as standard - strikers for PVCu available separately
The D-Fine range is made entirely from grade 316 stainless steel and is salt spray tested to 800 hours, therefore it is ideal for coastal and corrosive environments.
Ordering Information
Part code - PHDT55314
Description - 3 point touch bar panic bolt, grade 316 stainless steel
Specification Information
Panic devices with touch bar can be fitted to doors in public buildings such as schools, hospitals, retail outlets, nightclubs etc where people are unfamiliar with the surroundings.
PHD155 three point bolt is suitable for single doors
The D-Fine range is made entirely from grade 316 stainless steel and is salt spray tested to 800 hours, therefore it is ideal for coastal and corrosive environments.
Fitting Instructions
Certification
Tested and certified to EN 1125:2008 - classification 3-7-7-B-1-4-2-2-B-A
CE / UKCA Marked
Certifire approved 240 minutes
(Certifire CF5394)
Lifetime warranty against corrosion and 5 year warranty against manufacturing defects (conditions apply)
